Anchor or Impeller? Pick the Perfect One! [GUIDE]

Selecting the right mixing technology is crucial for efficient industrial processes, and the choice between an anchor or impeller depends heavily on specific application requirements. Fluid viscosity, a key factor analyzed by engineers at MixerDirect, dictates whether an anchor’s scraping action or an impeller’s turbulent flow is more suitable. Chemical engineers frequently consult resources such as the American Institute of Chemical Engineers (AIChE) to guide their selection process, particularly in industries ranging from pharmaceuticals to wastewater treatment. The design and optimization, often performed using computational fluid dynamics (CFD) software by companies like Ansys, is the key factor in deciding on the right choice. This article explains key points to ensure you pick the right anchor or impeller.

In countless industries, from the creation of life-saving pharmaceuticals to the production of everyday food items, the seemingly simple act of mixing stands as a cornerstone of manufacturing. Effective mixing and agitation are paramount for ensuring product consistency, accelerating reaction rates, and optimizing heat transfer. Inefficient or inadequate mixing, on the other hand, can lead to product defects, reduced yields, and increased operational costs.

This guide serves as a practical resource for understanding the nuances of industrial mixing, specifically focusing on two key workhorses: anchors and impellers.

Our aim is to demystify these technologies, providing you with the knowledge necessary to select the optimal mixing solution for your unique application. We’ll explore their distinct characteristics, advantages, and limitations, ultimately empowering you to make informed decisions that drive efficiency and enhance product quality.

The Ubiquity of Mixing and Agitation

Mixing and agitation are not isolated processes; they are integral to a vast range of industrial operations. Consider these examples:

• Pharmaceuticals: Ensuring uniform distribution of active ingredients in drug formulations.
• Food and Beverage: Blending ingredients, maintaining consistent texture, and preventing sedimentation.
• Chemical Processing: Promoting chemical reactions, controlling temperature, and suspending solids.
• Wastewater Treatment: Suspending solids and dispersing chemicals.
• Polymers and Plastics: Homogenizing polymers, dispersing additives, and controlling polymerization.

In each of these scenarios, the effectiveness of mixing directly impacts the quality, safety, and cost-effectiveness of the final product.

Navigating the Anchor vs. Impeller Decision

Choosing between an anchor and an impeller is not merely a matter of preference; it’s a strategic decision based on a thorough understanding of your process requirements. To navigate this decision effectively, we will explore the key factors that influence the selection of either an anchor or an impeller for a specific application. These factors include:

• Fluid Viscosity: The resistance of the fluid to flow, a critical factor influencing mixing efficiency.
• Tank Geometry: The shape and size of the vessel, which affects flow patterns and mixing intensity.
• Desired Mixing Outcome: The specific goals of the mixing process, such as homogeneity, suspension, or gas dispersion.
• Process Requirements: Factors like shear rate sensitivity, heat transfer needs, and cleaning requirements.

In the world of industrial mixing, the choice of equipment is far from arbitrary. The physical properties of the substances being combined, the desired outcome of the mixing process, and the geometry of the mixing vessel all play crucial roles in determining the most effective solution. In many applications, especially those involving highly viscous materials, anchors emerge as the preferred technology.

Anchors Unveiled: The Gentle Giants of Mixing

What is an Anchor Impeller?

An anchor impeller is a type of mixing device characterized by its close proximity to the walls of the mixing vessel. The anchor’s blades conform closely to the shape of the tank, typically with a clearance of only a few millimeters.

This design is key to its function.

As the anchor rotates, it sweeps the walls of the vessel, preventing material build-up and promoting heat transfer. Its working principle relies on generating a laminar flow pattern, which is particularly suitable for viscous fluids that resist turbulent mixing.

Typical Anchor Impeller Designs

While the basic principle remains the same, anchor impellers come in various designs to suit different applications.

• Standard Anchor: The simplest design, featuring a U-shaped blade that closely follows the tank’s contours.

• Gate Anchor: Incorporates vertical bars or "gates" connecting the main blade to provide additional structural support and enhance mixing in the vertical direction.

• Helical Anchor: Features a helical blade that promotes axial flow, improving mixing uniformity throughout the vessel. These are often used in tall, slender tanks.

• Anchor with Scrapers: Equipped with spring-loaded scrapers that maintain continuous contact with the vessel walls, effectively removing any accumulated material. This is crucial in applications where fouling is a concern.

Key Advantages of Anchors

Anchors offer several distinct advantages, particularly in specific mixing scenarios.

Effective at Low Speeds

Anchors excel at low rotational speeds. This is beneficial for processes where excessive shear is undesirable or when dealing with shear-sensitive materials.

Good for Viscous Fluids

Anchors are exceptionally well-suited for handling viscous fluids. Their close-clearance design ensures that all parts of the fluid mass are effectively mixed, even when resistance to flow is high.

Promote Wall Scraping

One of the key features of anchors is their ability to scrape the walls of the mixing vessel. This action prevents the buildup of solids or viscous layers on the walls, which can impair heat transfer and reduce mixing efficiency. Wall scraping is essential in processes involving crystallization, polymerization, or heat-sensitive materials.

Limitations of Anchors

Despite their strengths, anchors also have limitations that must be considered.

Poor Mixing at the Center of Mixing Vessels

Anchors primarily induce tangential flow. This means that mixing is less effective in the center of the vessel, where the influence of the anchor’s blades is weaker. This can lead to non-uniformity in the final product, especially in larger tanks.

Inefficient for Large Volumes or Turbulent Flow

Anchors are generally not suitable for large-volume mixing or applications requiring turbulent flow. In these scenarios, other impeller types are more efficient at generating the necessary mixing intensity. Attempting to use an anchor in such conditions can result in high power consumption and poor mixing performance.

Applications Where Anchors Excel

Anchors are the preferred choice in a range of specific industrial applications.

High-Viscosity Fluids

Anchors are ideal for mixing highly viscous materials, such as polymers, adhesives, and thick pastes. Their design ensures that even these difficult-to-mix substances are thoroughly blended.

Heat Transfer Applications

The wall-scraping action of anchors makes them particularly effective in heat transfer applications. By preventing fouling on the vessel walls, anchors maintain efficient heat exchange between the fluid and the heating or cooling medium. This is crucial in processes where precise temperature control is essential.

Scraping of Vessel Walls to Prevent Fouling

As mentioned earlier, anchors are invaluable in processes where fouling is a concern. By continuously scraping the vessel walls, they prevent the accumulation of solids or viscous layers, ensuring optimal mixing performance and heat transfer efficiency. This is especially important in the food and beverage industry and in pharmaceutical manufacturing.

As we’ve seen, anchors are adept at handling specific mixing challenges. Now, let’s shift our focus to another crucial category of mixing equipment: impellers. These dynamic devices offer a different set of capabilities and are suited to a broader range of applications.

Impellers in Action: The Versatile Mixing Masters

Impellers stand as the workhorses of the mixing world, prized for their versatility and efficiency across a wide spectrum of applications. Unlike anchors, which excel in specific scenarios involving high viscosity, impellers offer robust mixing capabilities for fluids ranging from water-like to moderately viscous.

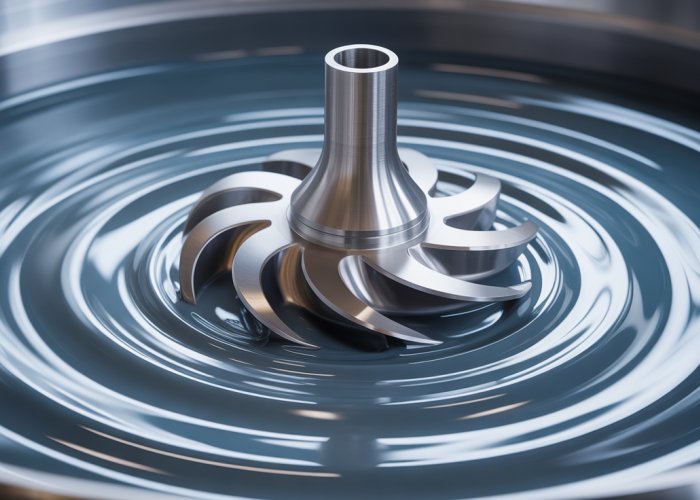

What is an Impeller?

An impeller is a rotating component designed to impart energy and motion to fluids within a vessel. Its function revolves around creating flow patterns that promote blending, dispersion, or suspension of materials.

Impellers typically feature blades or vanes attached to a central hub, which, when rotated, generate fluid movement. The specific design of these blades dictates the type of flow pattern produced, influencing the impeller’s suitability for different mixing tasks.

Impeller Working Principles

The fundamental principle behind impeller operation is the transfer of mechanical energy to the fluid. As the impeller rotates, it creates pressure differences and velocity gradients within the liquid.

These, in turn, generate flow patterns, such as radial, axial, or tangential flow, depending on the impeller’s geometry. The intensity of mixing, defined by factors like shear rate and turbulence, is directly influenced by the impeller’s design, rotational speed, and the fluid’s properties.

Different Impeller Types

The versatility of impellers is reflected in the wide variety of designs available. Each type is optimized for specific mixing requirements.

Rushton Turbine

The Rushton turbine is a radial flow impeller characterized by its flat, disc-mounted blades. It generates high shear rates, making it suitable for emulsification, gas dispersion, and processes requiring intense mixing. However, its radial flow pattern can lead to poor top-to-bottom mixing in tall tanks.

Pitched Blade Turbine

Pitched blade turbines feature blades angled relative to the impeller’s plane of rotation. This design creates a combination of radial and axial flow, promoting better mixing throughout the vessel. They are often used for solid suspension and general-purpose mixing applications.

Hydrofoil Impeller

Hydrofoil impellers are designed for high-efficiency axial flow. Their streamlined blades minimize turbulence and power consumption, making them ideal for blending and maintaining homogeneity in large tanks. They are particularly effective in applications where gentle mixing is required to avoid damaging sensitive materials.

Key Advantages of Impellers

Impellers offer several key advantages over other mixing technologies, making them the preferred choice for numerous industrial processes.

Efficient Mixing at Higher Speeds

Impellers are designed to operate efficiently at higher rotational speeds compared to anchors. This allows them to generate greater shear rates and turbulence, resulting in faster mixing times and improved homogeneity.

Suitable for a Wide Range of Fluid Viscosities

While anchors are primarily used for highly viscous fluids, impellers can handle a broad range of viscosities, from water-like liquids to moderately viscous solutions.

This versatility makes them suitable for diverse applications across industries.

Creating Turbulent Flow

Many impeller designs are capable of inducing turbulent flow, which is characterized by chaotic and random fluid motion. Turbulence enhances mixing by promoting the rapid dispersion of materials and the breakdown of concentration gradients. This is particularly beneficial for processes requiring efficient mass transfer, such as chemical reactions and gas absorption.

Limitations of Impellers

Despite their versatility, impellers have some limitations that should be considered when selecting a mixing device.

Not Ideal for Very High Viscosity Fluids

Impellers may struggle to effectively mix extremely viscous fluids. The high resistance to flow can reduce their efficiency and lead to uneven mixing. In such cases, anchors or other specialized mixing devices are often more suitable.

Less Effective at Low Speeds

Impellers typically require a certain minimum speed to generate adequate mixing. At very low speeds, their performance may be compromised, resulting in poor blending and inadequate suspension of solids.

Applications Where Impellers Excel

Impellers excel in a wide array of applications where their unique mixing capabilities are highly valued.

Mixing of Low to Medium Viscosity Fluids

Impellers are the go-to choice for mixing low to medium viscosity fluids in various industries, including food and beverage, pharmaceuticals, and chemicals. They ensure uniform blending of ingredients, consistent product quality, and efficient process operation.

Suspension of Solids

Impellers are highly effective at suspending solid particles in liquids. This is crucial in applications such as mineral processing, wastewater treatment, and the production of slurries and suspensions. The impeller’s flow pattern keeps the solids evenly distributed, preventing settling and ensuring consistent process performance.

Gas Dispersion

Impellers play a vital role in gas dispersion processes, where gases are introduced into liquids to promote reactions or mass transfer. The impeller’s rotation creates fine gas bubbles and distributes them throughout the liquid, maximizing the interfacial area for efficient gas-liquid interaction. This is essential in applications such as fermentation, aeration, and chemical oxidation.

As we’ve seen, anchors are adept at handling specific mixing challenges. Now, let’s shift our focus to another crucial category of mixing equipment: impellers. These dynamic devices offer a different set of capabilities and are suited to a broader range of applications.

Anchor vs. Impeller: Key Decision Factors

Choosing between an anchor and an impeller is not a matter of simple preference. It’s a decision deeply rooted in a careful evaluation of several interconnected factors. This decision demands a nuanced understanding of the process requirements, fluid properties, and the desired mixing outcomes.

Fluid Properties: Viscosity and Beyond

Viscosity reigns supreme as the primary determinant in selecting the appropriate mixing device. High-viscosity fluids demand the positive displacement and wall-scraping action of anchors. These are especially beneficial in preventing stagnant zones.

On the other hand, lower-viscosity fluids respond well to the high-speed, turbulent mixing induced by impellers. But viscosity is not the only factor.

The Nuances of Non-Newtonian Fluids

Non-Newtonian fluids, whose viscosity changes under shear stress, add another layer of complexity. Shear-thinning fluids become easier to mix with impellers as shear increases. Shear-thickening fluids may require the constant force of an anchor.

Careful consideration is required. Accurate fluid characterization is crucial.

Tank Geometry: Shape, Size, and Baffles

The shape and size of the mixing tank play a pivotal role in dictating the flow patterns generated. These also influence the overall mixing efficiency.

Tall, slender tanks may benefit from the axial flow induced by certain impellers. Wide, shallow tanks could better suit the radial flow of an anchor.

The Importance of Baffles

Baffles, strategically placed within the tank, disrupt circular flow patterns, preventing swirling and promoting vertical mixing. The presence, number, and design of baffles dramatically impact the effectiveness of both anchors and impellers.

Baffles are especially crucial when using impellers to prevent vortex formation and enhance bulk fluid movement.

Desired Mixing Outcome: Homogeneity, Suspension, and Dispersion

The goal of mixing varies. Achieving homogeneity, suspending solids, or dispersing gases requires different mixing approaches.

Anchors excel at creating uniform temperature distribution. They are especially adept in heat-sensitive applications. Impellers are more effective at suspending solids due to their ability to generate higher shear rates and turbulence.

Solid Suspension and Gas Dispersion

For solid suspension, the impeller design and speed must be carefully selected. This will ensure that the particles remain suspended throughout the tank. Gas dispersion applications require impellers that can effectively break up gas bubbles. They must also distribute them evenly throughout the liquid phase.

Process Requirements: Fluid Dynamics at Play

Understanding fundamental fluid dynamics principles is crucial for optimizing mixing performance. The desired shear rate, a measure of the force applied to the fluid, directly affects mixing intensity and can impact product quality.

The Reynolds number, a dimensionless quantity that characterizes the flow regime (laminar or turbulent), guides the selection of the appropriate mixing device and operating conditions.

For laminar flow (low Reynolds number), anchors are often preferred. For turbulent flow (high Reynolds number), impellers typically provide better mixing efficiency.

Performance Under the Microscope: Metrics and Considerations

Having dissected the individual characteristics of anchors and impellers and examined the key decision factors guiding their selection, it’s time to scrutinize their performance under real-world conditions. Quantifiable metrics provide essential insight into the efficiency and suitability of each mixing device, ultimately influencing the overall success of the mixing process.

Power Consumption: Energy Efficiency and Operational Costs

Power consumption is a critical performance metric, directly impacting operational costs and sustainability. Understanding the energy demands of anchors and impellers is essential for making informed decisions.

Anchors vs. Impellers: A Comparative Analysis

Anchors generally exhibit higher power consumption compared to impellers, particularly at equivalent mixing intensities. This stems from their mode of operation, which relies on positive displacement and wall scraping to handle highly viscous fluids. Overcoming the resistance of these fluids requires substantial torque, leading to increased energy expenditure.

Impellers, on the other hand, can achieve comparable mixing results at lower power levels in less viscous environments. Their ability to generate turbulent flow efficiently translates to lower energy demands, making them an attractive option where appropriate.

Factors Influencing Power Draw

Several factors contribute to the power consumption of both anchors and impellers:

• Fluid Viscosity: Higher viscosity directly correlates with increased power consumption.
• Impeller/Anchor Speed: Power draw increases exponentially with rotational speed.
• Tank Geometry: Tank size and shape affect the flow patterns and overall mixing efficiency, which in turn impacts power consumption.
• Baffle Design: Baffles influence turbulence and mixing intensity, affecting the power required to achieve the desired outcome.
• Impeller/Anchor Design: Different designs exhibit varying levels of hydrodynamic efficiency.

Agitation Intensity and Mixing Time: Achieving Optimal Homogeneity

Agitation intensity and mixing time are intrinsically linked, with one influencing the other to achieve the desired level of homogeneity.

Anchor-Driven Mixing

Anchors, with their slower rotational speeds, generally provide lower agitation intensity compared to impellers. However, their ability to sweep the vessel walls effectively reduces stagnant zones and promotes uniform mixing in viscous fluids. They often require longer mixing times to achieve homogeneity, especially in large tanks.

Impeller-Driven Mixing

Impellers, especially those designed for turbulent flow, excel at generating high agitation intensity. This leads to shorter mixing times, making them suitable for processes requiring rapid homogenization. However, in highly viscous fluids, the high shear rates produced by impellers may lead to localized heating or degradation of the product.

Application-Specific Considerations: Solid Suspension and Beyond

The choice between anchors and impellers extends beyond general mixing capabilities, impacting specialized applications such as solid suspension and gas dispersion.

Solid Suspension

Impellers generally outperform anchors in solid suspension applications. Their ability to generate strong axial or radial flow patterns effectively suspends solid particles, preventing sedimentation and ensuring uniform distribution throughout the mixture.

Anchors, however, can be used in conjunction with impellers to improve solid suspension in highly viscous fluids, where the anchor provides the bulk mixing and the impeller focuses on suspending the solids.

Gas Dispersion

Impellers are the preferred choice for gas dispersion applications. Specifically designed impellers, like Rushton turbines, can effectively break down gas bubbles and disperse them throughout the liquid phase. This enhances mass transfer and promotes chemical reactions involving gaseous reactants.

Anchors are not typically used for gas dispersion due to their low agitation intensity and inability to create the shear forces necessary for bubble breakup.

Power consumption, agitation intensity, and application-specific needs paint a detailed picture, but theory alone rarely suffices. The true test of anchor or impeller selection lies in its real-world application. Let’s examine several case studies that highlight the practical considerations and optimal choices in diverse scenarios.

Real-World Choices: Case Studies in Action

To truly understand the nuances of anchor versus impeller selection, let’s examine real-world scenarios. These case studies demonstrate how theoretical considerations translate into practical choices, highlighting the benefits of each mixing device in specific applications.

Case Study 1: High-Viscosity Polymer Production – The Anchor’s Domain

Polymer production often involves fluids with exceptionally high viscosities. In such cases, anchors typically outperform impellers.

Consider a process involving the polymerization of a viscous monomer into a high molecular weight polymer. The fluid exhibits non-Newtonian behavior, becoming even more viscous as the reaction progresses.

The Challenge

The primary challenge is to ensure uniform mixing and heat transfer throughout the reaction vessel. Inadequate mixing can lead to localized hot spots, resulting in polymer degradation or inconsistent product quality.

The Solution: Anchor Impeller

An anchor impeller is strategically selected due to its ability to effectively mix highly viscous fluids at relatively low speeds. The anchor’s close clearance to the vessel walls promotes efficient heat transfer, preventing the buildup of polymer on the surfaces.

Furthermore, the anchor’s scraping action helps to minimize fouling and maintain consistent mixing performance over extended production runs.

Outcome

The use of an anchor impeller results in a homogeneous polymer product with consistent molecular weight distribution and desirable properties. The efficient heat transfer prevents degradation, ensuring high product yield and quality.

Case Study 2: Chemical Reactor Mixing – The Impeller’s Versatility

Chemical reactors often require efficient mixing of low-to-medium viscosity fluids, along with solid suspension or gas dispersion capabilities. Impellers are frequently the preferred choice in these applications.

Imagine a scenario where a chemical reaction involves the suspension of solid catalysts in a liquid reactant and the dispersion of a gaseous reagent.

The Challenge

The key is to maintain a uniform suspension of the catalyst particles to maximize reaction rates and ensure complete conversion of reactants. Effective gas dispersion is also essential to provide sufficient contact between the gaseous reagent and the liquid phase.

The Solution: Rushton Impeller

A Rushton impeller, a type of radial flow impeller, is selected for its ability to generate strong turbulent flow. This turbulent flow is crucial for suspending solid particles and dispersing gas bubbles throughout the reactor volume.

The Rushton impeller creates a well-mixed environment, promoting uniform reaction rates and maximizing product yield.

Outcome

The use of a Rushton impeller results in a high conversion rate of reactants and a stable, well-controlled chemical reaction. The uniform suspension of catalyst particles ensures consistent product quality and minimizes side reactions.

Case Study 3: Hybrid Mixing System – Combining Strengths

In some cases, neither an anchor nor an impeller alone can provide the optimal mixing solution. A combination of both may be necessary to achieve the desired performance.

Consider a fermentation process involving a highly viscous culture medium and the need for both gentle mixing and efficient gas dispersion.

The Challenge

The challenge is to maintain cell viability while ensuring adequate oxygen transfer to support cell growth. High shear rates can damage cells, while insufficient mixing can lead to oxygen limitation and reduced product yield.

The Solution: Anchor and Impeller Combination

A combination of an anchor impeller and a pitched blade turbine is employed. The anchor gently mixes the viscous culture medium, promoting homogeneity and preventing sedimentation. The pitched blade turbine provides efficient gas dispersion, ensuring adequate oxygen transfer to the cells.

The anchor provides bulk mixing, and the pitched blade impeller ensures effective aeration, which are critical for fermentation processes.

Outcome

The hybrid mixing system allows for optimal cell growth and product formation. The gentle mixing action of the anchor minimizes cell damage, while the efficient gas dispersion of the turbine ensures adequate oxygen supply.

Alright, that’s the rundown on anchor or impeller selection. Hopefully, this helps you make the best decision for your needs. Good luck with your mixing!
